OFF Grid Solar Systems Complete Kit 5.5KW/11KW/16.5KW/22KW/27.5KW/33KW Wifi Monitoring Hybrid Solar Systems for Home Office Dormitory Farm

Name: OFF Grid Solar Systems Complete Kit 5.5KW/11KW/16.5KW/22KW/27.5KW/33KW Wifi Monitoring Hybrid Solar Systems for Home Office Dormitory Farm
SKU: SB-OFFGRID-KIT
Availability: InStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

4 632 EUR 23 461 EURPrice range: 4 632 EUR through 23 461 EUR

EUR

USD

Choice

11KW
16.5KW
22KW
27.5KW
33KW
5.5KW

Clear

SKU: SB-OFFGRID-KIT Categories: All Products, Solar Systems

Description

When selecting proper PV modules, pleases be sure to consider below parameters:

Open circuit Voltage(Voc) of PV modules not exceeds max. PV array open circuit Voltage of inverter;
Open circuit Voltage of PV modules should be higher than min. battery voltage.

About Warranty：

1.Solar Panel -25 Year Quality Warranty

2.Hybrid Solar Inveter -5 Year Quality Warranty

3.LiFePO4 Battery – 10 Year Quality Warranty

This is our basic configuration:

Parts	Description	Quantity
Parts	Description	5.5KW	11KW	16.5KW	22KW	27.5KW	33KW

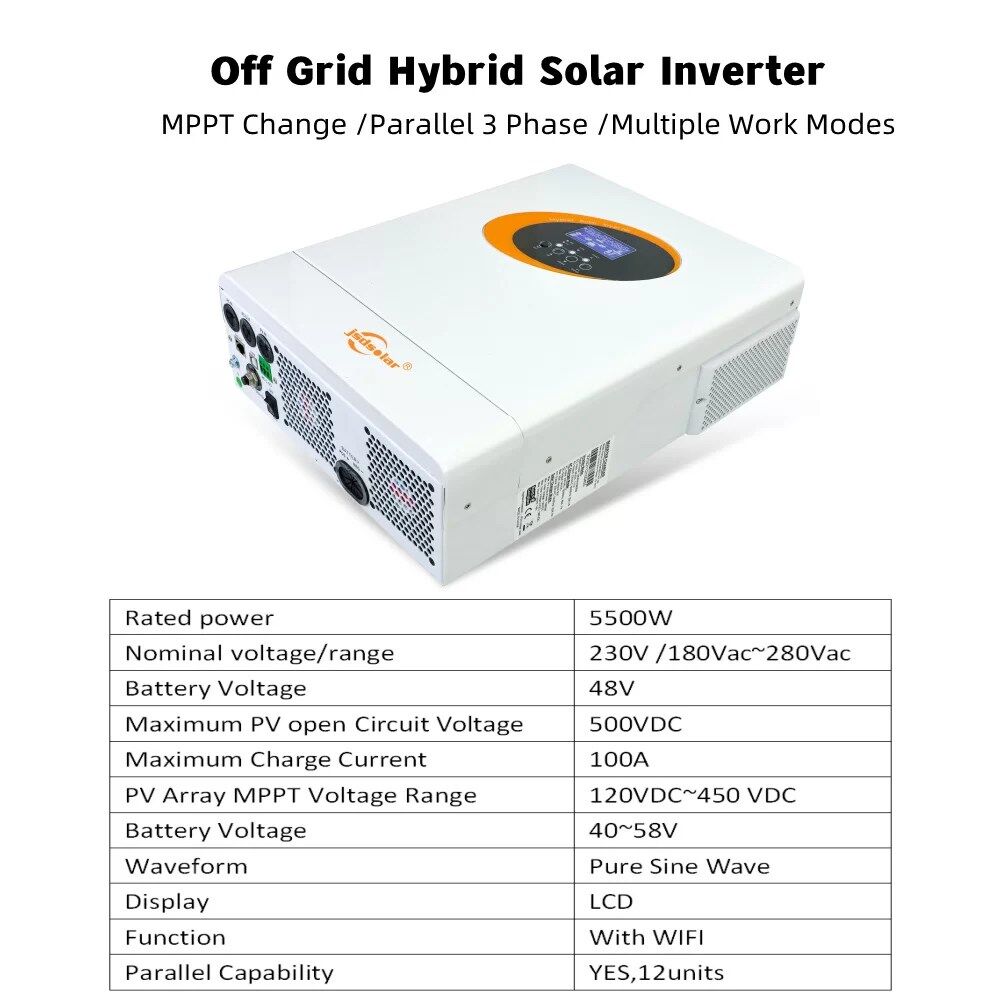

MPPT Controller Inverter	Model:48V/5500W Input：48VDC AC Output：220V/50Hz, 5500W Max Charge Current：100A	1PC	2PCS	3PCS	4PCS	5PCS	6PCS

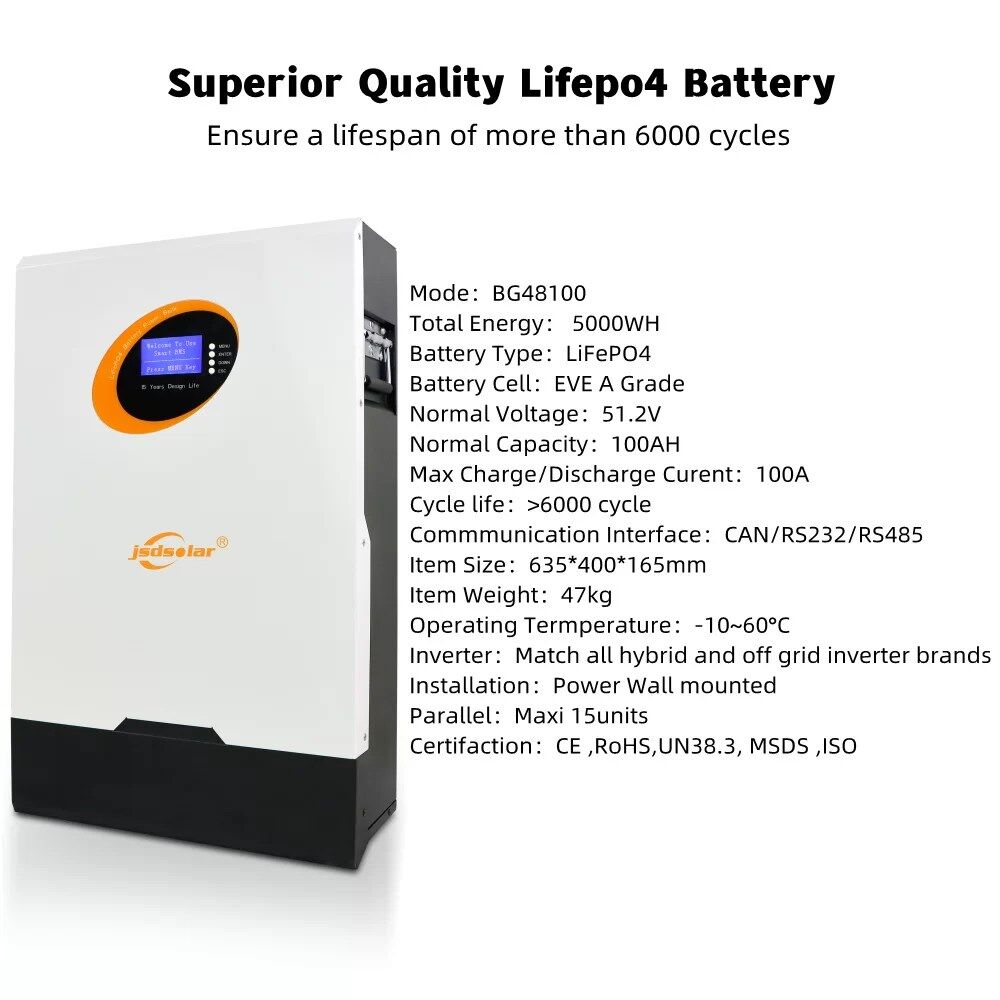

Lifepo4 battery pack	Model:48V 100AH Rated Voltage：51.2V Rated Capacity：100AH Net Weight：48kg DOD depth：100%	1PC	2PCS	3PCS	4PCS	5PCS	6PCS

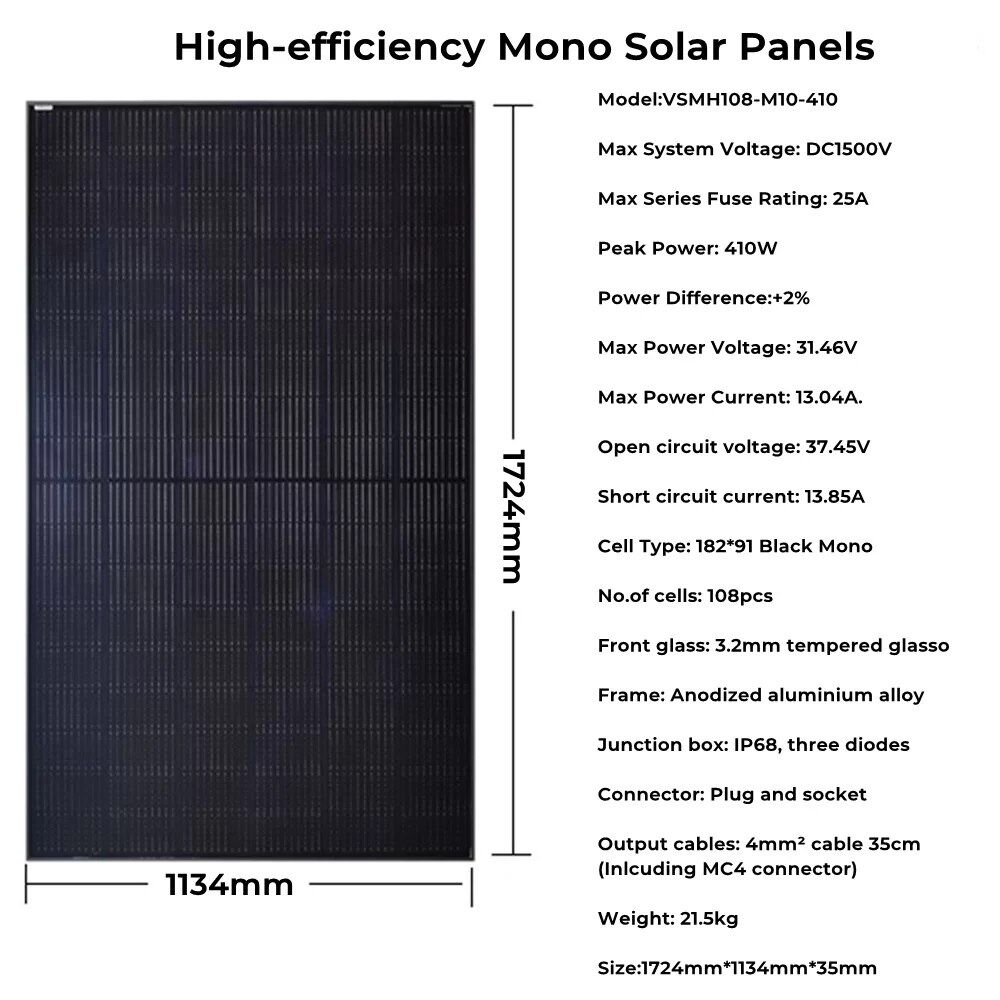

PV Panel	Model:VSMH108-410-M10 Mono Type Vmp:32V ; Imp:13A; Voc：37V； Isc：13A； Rate Power：410W； Size：1724113435mm Weight：21.5 kg	6PCS	12PCS	18PCS	24PCS	30PCS	36PCS
Pitched Roof PV Panels Mounting Bracket	Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting	1Set	1Set	1Set	1Set	1Set	1Set
Power Distribution Box	Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc	1PC	2PCS	3PCS	4PCS	5PCS	6PCS
Cable	Model:PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃	20M	40M	60M	80M	100M	120M
PV Waterproof Connector	Model:MC4 Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67	1Set	1Set	1Set	1Set	1Set	1Set

Additional information

Choice	11KW, 16.5KW, 22KW, 27.5KW, 33KW, 5.5KW
