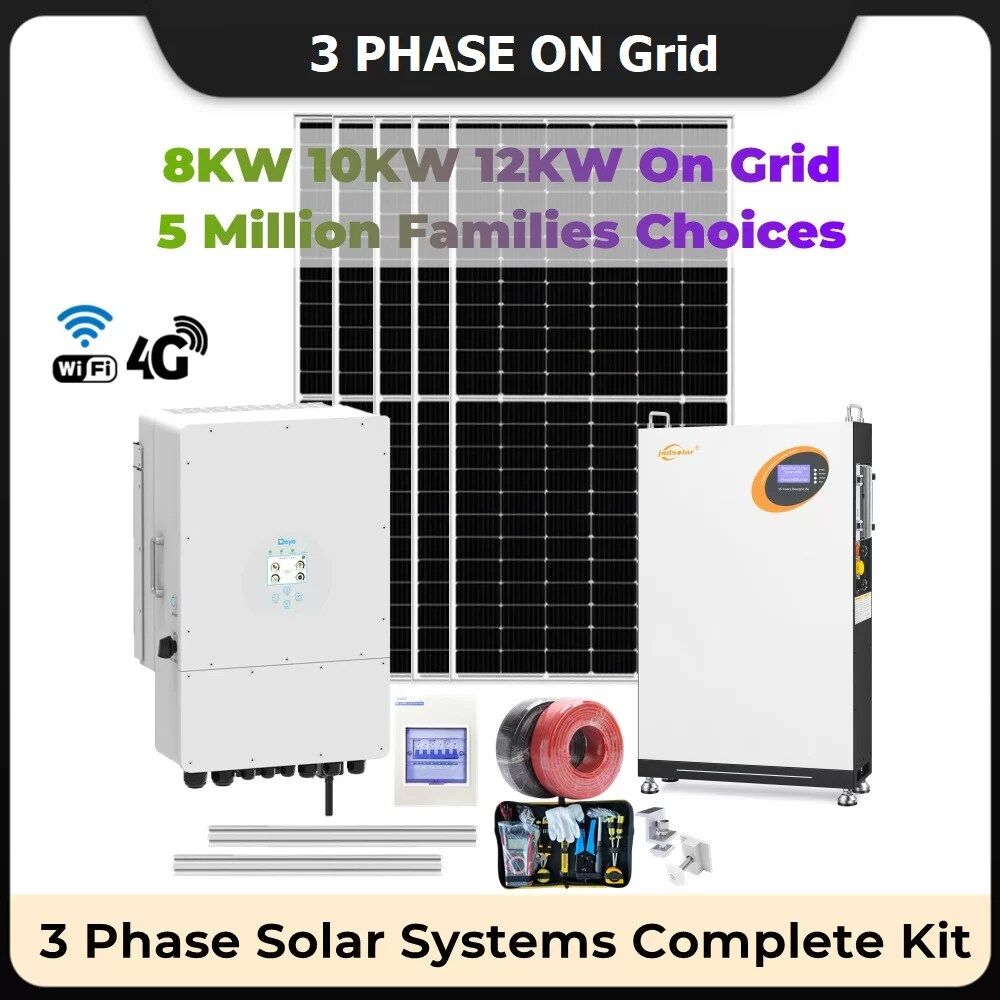

ON Grid 8KW 10KW 12KW Solar System Complete Kit 3 Phase 380V Solar Panel 550W LiFePO4 Battery Hybrid Solar Storage System

Name: ON Grid 8KW 10KW 12KW Solar System Complete Kit 3 Phase 380V Solar Panel 550W LiFePO4 Battery Hybrid Solar Storage System
SKU: SB-ONGRID-3PHASE
Availability: InStock

10 319 EUR 12 958 EURPrice range: 10 319 EUR through 12 958 EUR

EUR

USD

Choice

10KW
12KW
8KW

Clear

SKU: SB-ONGRID-3PHASE Categories: All Products, Solar Systems

Description

When selecting proper PV modules, Pls be sure to consider below parameters:

Open circuit Voltage(Voc) of PV modules not exceeds max. PV array open circuit Voltage of inverter;
Open circuit Voltage of PV modules should be higher than min. battery voltage.

About Warranty：

1.Solar Panel -25 Year Quality Warranty

2.Hybrid Solar Inveter -5 Year Quality Warranty

3.LiFePO4 Battery – 10 Year Quality Warranty

This is our basic configuration, contact us for more suitable solutions.

Parts	Description	Quantity
Parts	Description	8KW	10KW	12KW

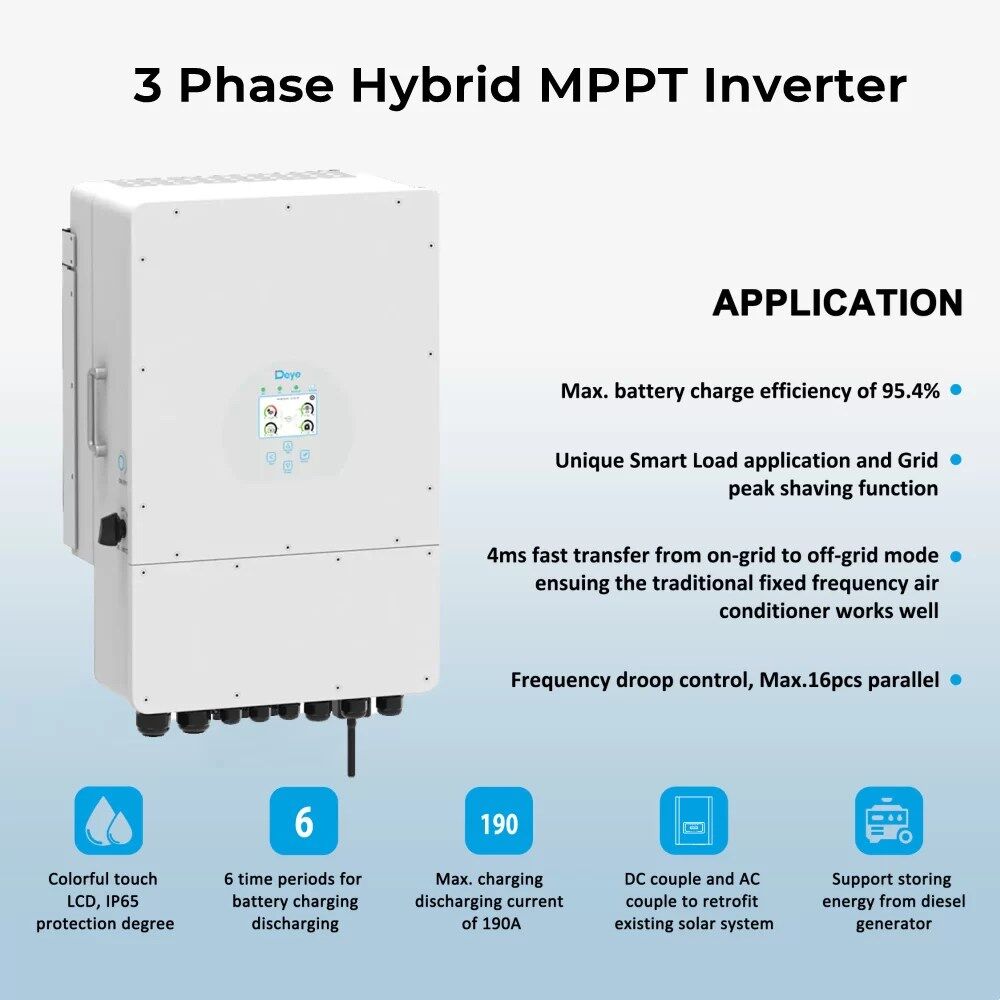

Deye On Grid Hybird Inverter	Grid Type：3 Phase Solar Charge Type: 2 MPPT Battery Voltage: 48V Frequency. 50Hz/60Hz Output voltage: 3L/N/PE 220/380, 230/400Vac Protection Degree：IP65	1PC	1PC	1PC

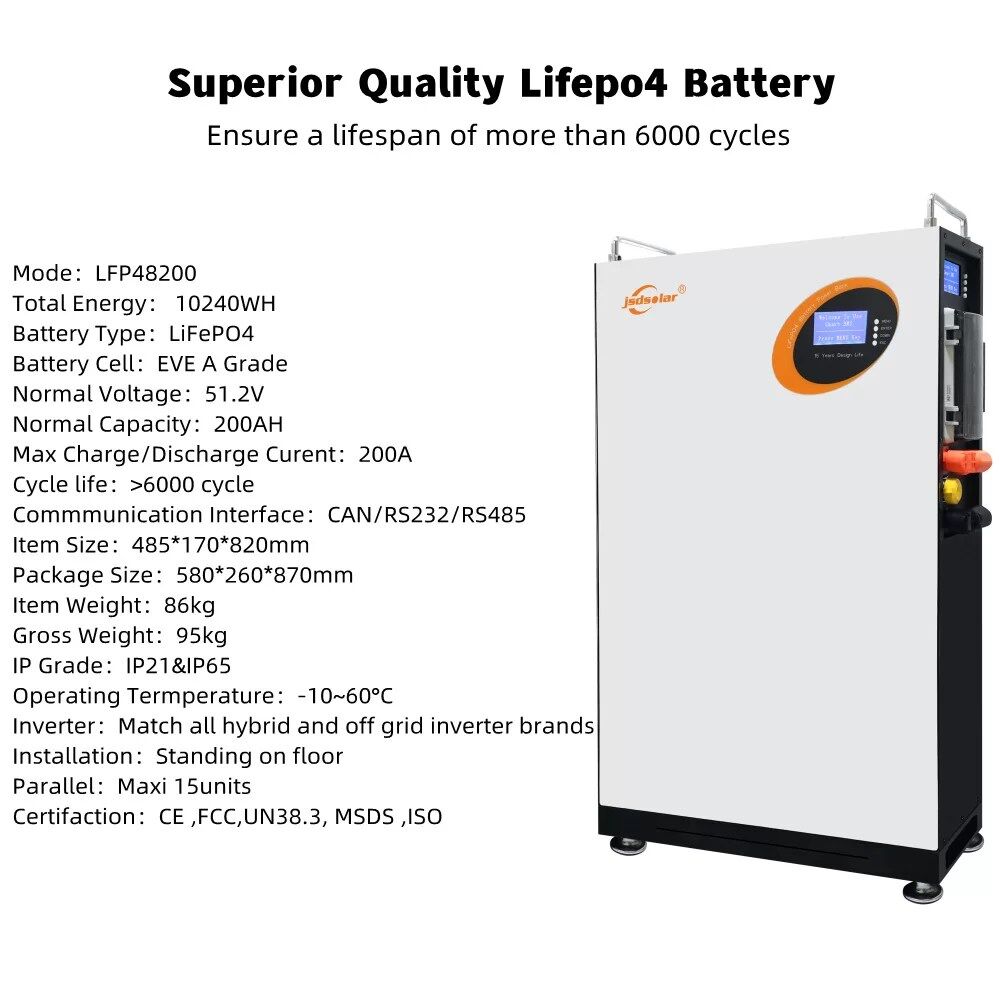

Lifepo4 battery pack	Model:48V 200AH Rated Voltage：51.2V Rated Capacity：200AH Net Weight：95kg DOD depth：100%	1PC	1PC	1PC

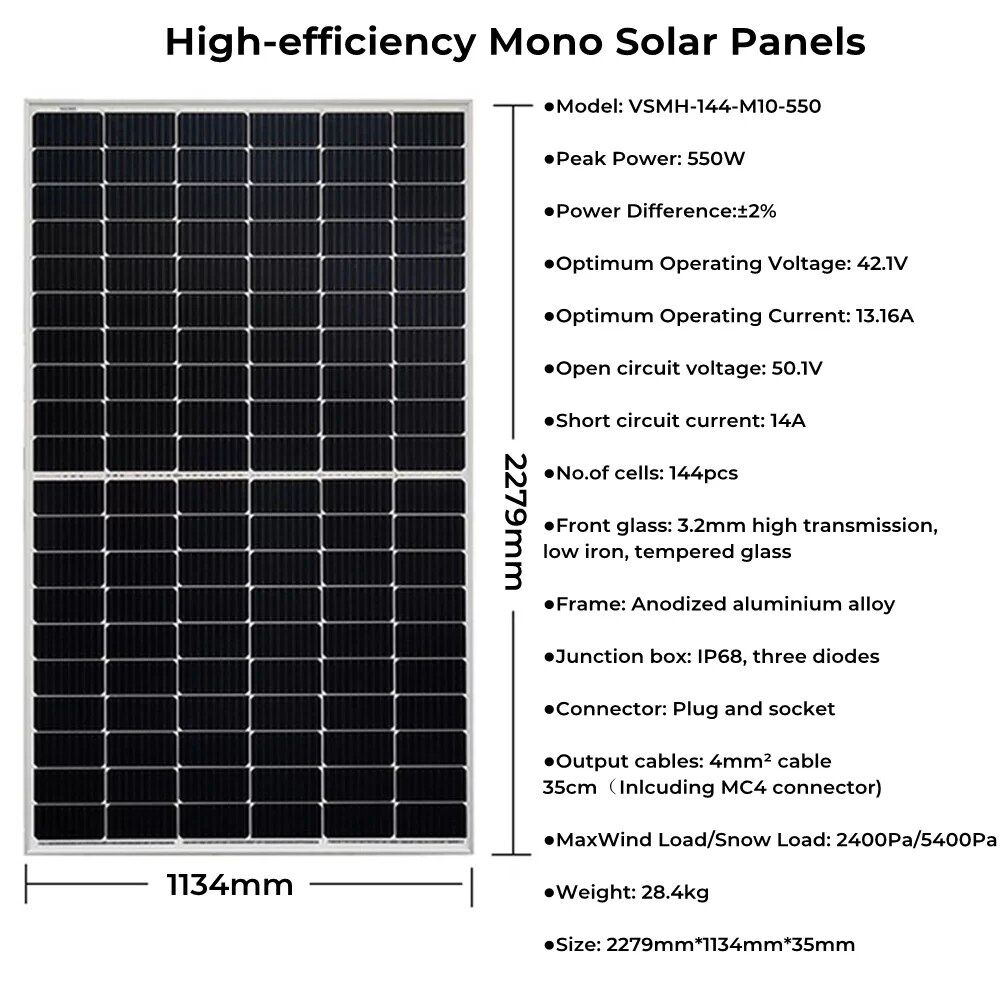

Mono PV Panels	Model:VSMH-144-M10-550 Mono Type Vmp:42V ; Imp:13.16A; Voc：50.1V； Isc：14A； Rate Power：550W； Size：2279113435mm Weight：28.4 kg	12PCS	16PCS	20PCS
Pitched Roof PV Panels Mounting Bracket	Customized,Anti-erosion Aluminum Alloy for rooftop or ground mounting	1Set	1Set	1Set
Power Distribution Box	Customized,Including leakage circuit breaker, 32A 250V air-switch,16A by-pass switch etc	1PC	1PC	1PC
Cable	Model:PV-1*6mm2 Special high Anti-UV and Wear-Resistant PV cable WorkingTemperature：-40℃-90℃	20M	30M	40M
PV Waterproof Connector	Model:MC4 Rated Voltage: 1000V DC Rated Current: 30A IP Rate: IP67	1Set	1Set	1Set
