Description

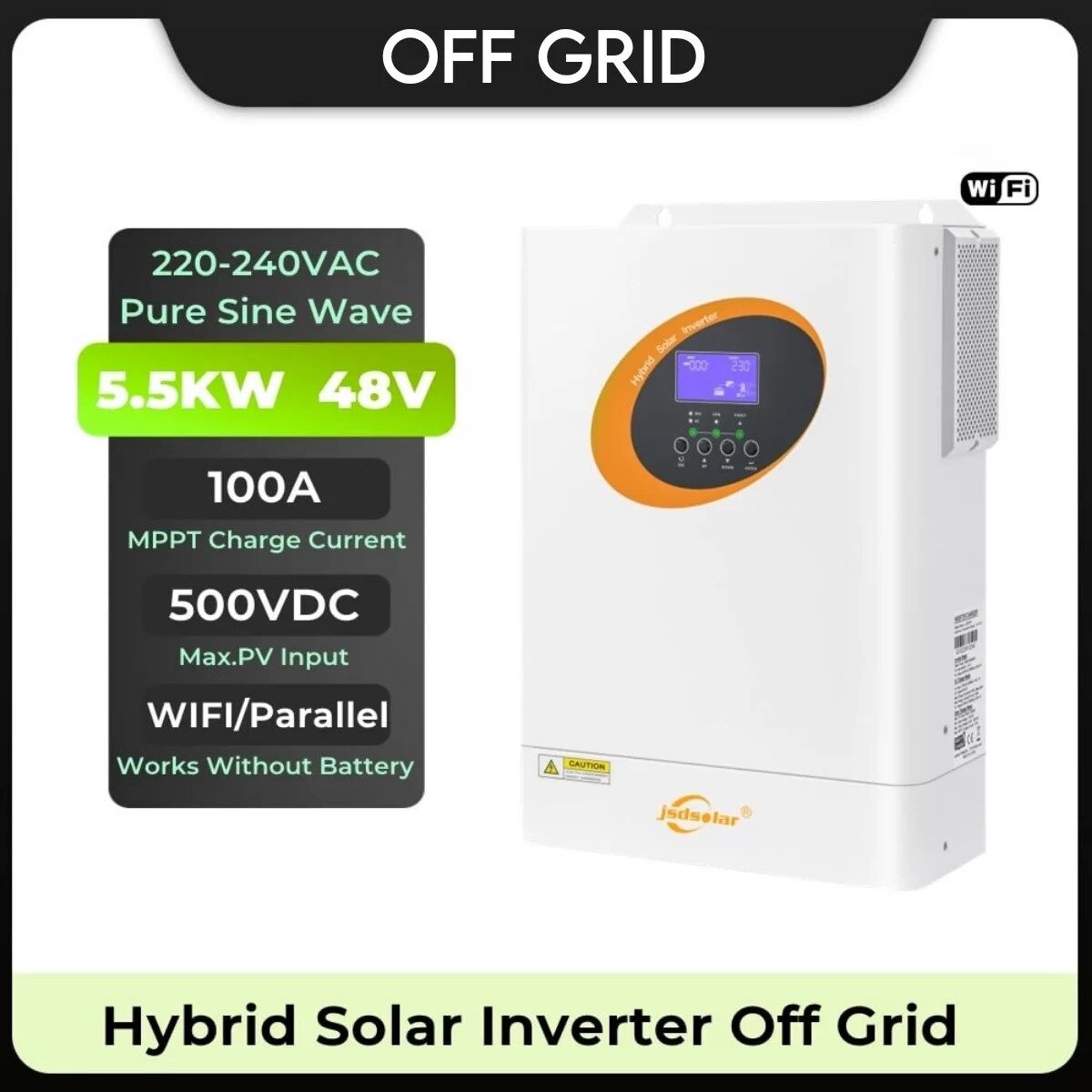

5.5KW Hybrid Solar Inverter 48V 220V MPPT 100A Solar Charger Pure Sine Wave Off Grid Solar Invertor With Parallel and WIFI
Overview:
This is a multi-function inverter/charger, combining functions of inverter, MPPT 100A solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
●Pure sine wave inverter
●Buit-in MPPT solor charge controller
●Inverter Running Without Battery

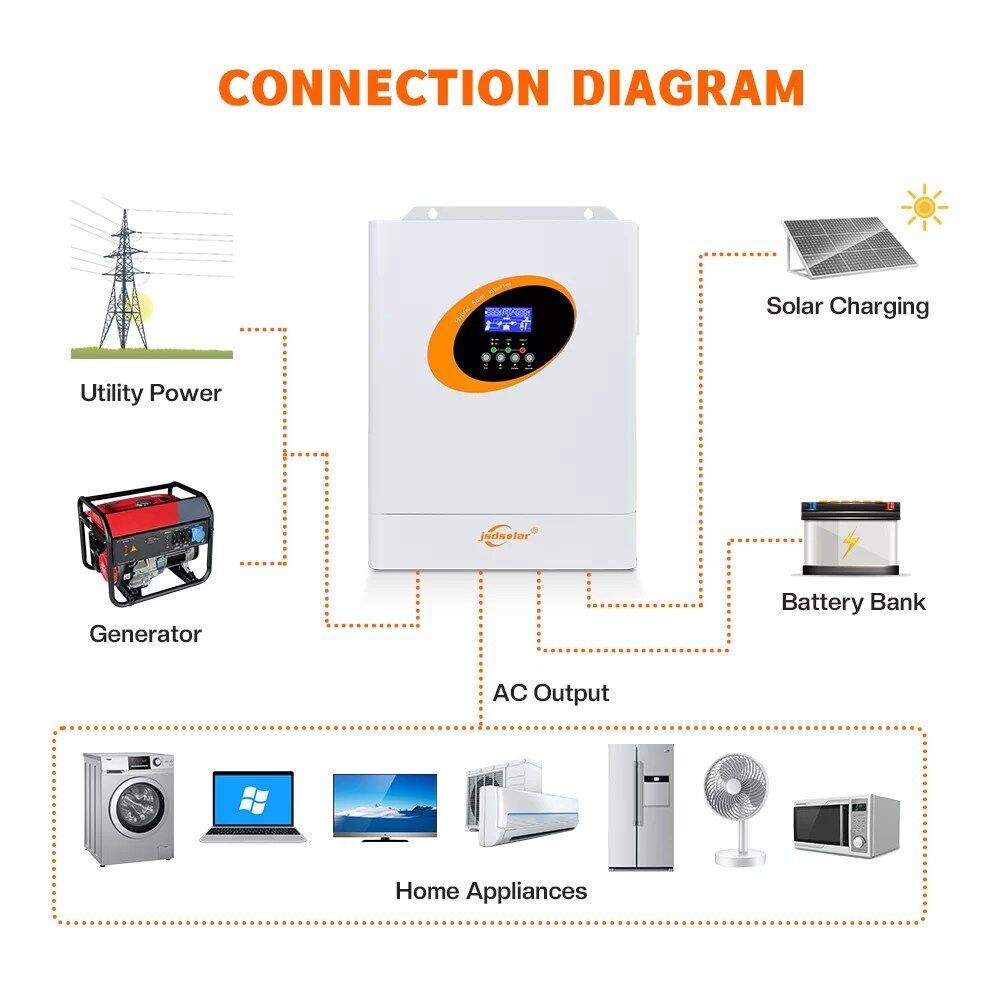

●Automatic Switch Between Solar Power and Utility Power
●Selectable input voltage range for home appliances and personalcomouters.
●Selectable charging current based on applications

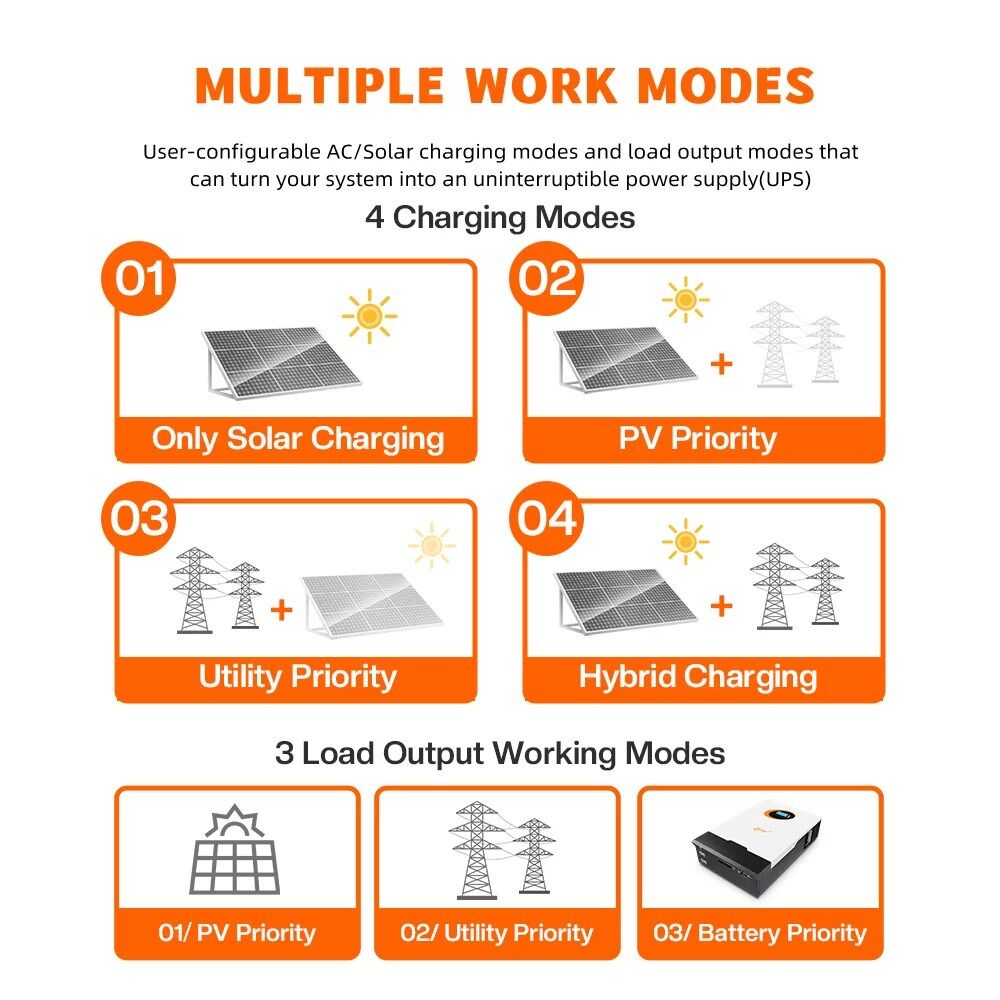

●Configurable AC/Solar input priority via LCD setting
●Compatible to mains voltoge or generotor power
●Auto restart while AC is recovering
●Overload/ Over temperature/ short circuit protection
●Smart battery charger design for optimized battery performance
●Cold start funtion
●Smart Wifi remote monitoring (optional)

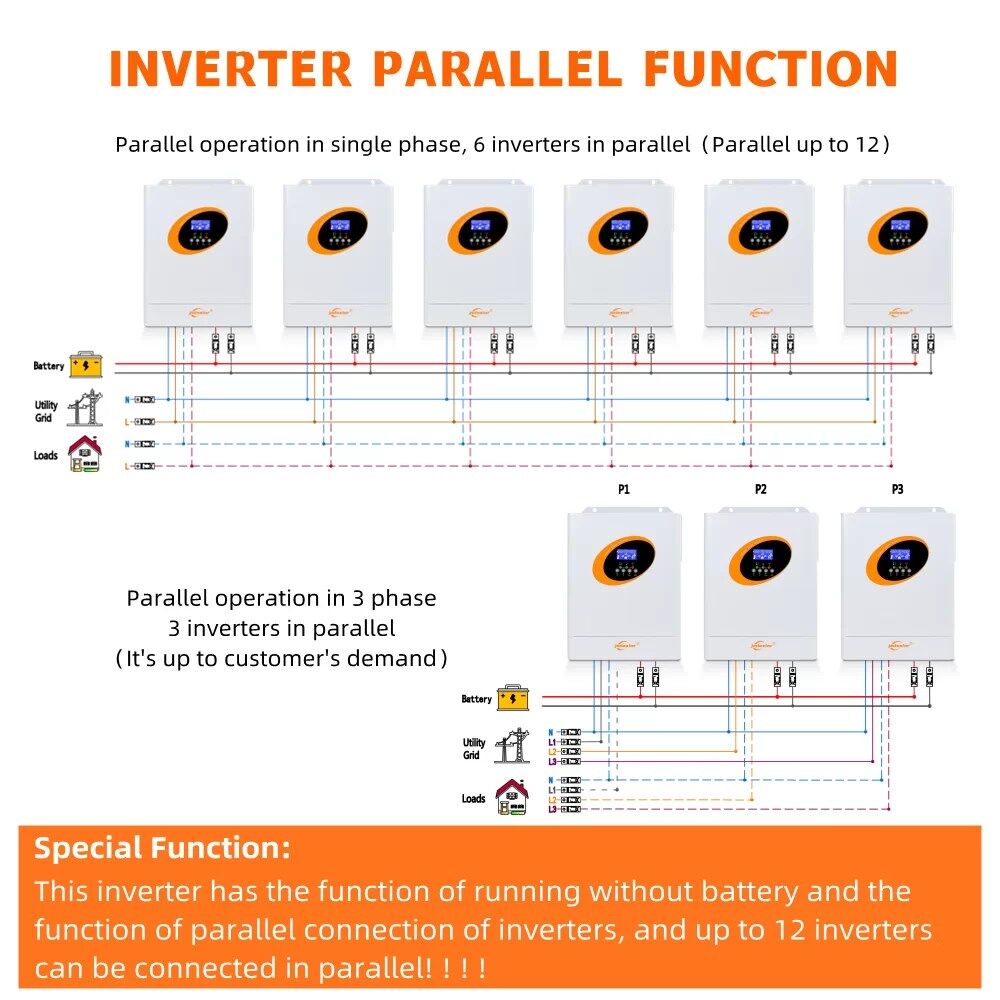

●Parallel operation with up to 12 units, support parallel in 1phase/3phase, support wireless parallel
| MODEL | J5500HP |
| Capacity | 5.5KW |
| Parallel Capability | YES,12units |
| Input | |
| Nominal Voltage | 230VAC |
| Acceptable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) |
| Frequency | 50/60Hz (Auto sensing) |
| Output | |
| Nominal Voltage | 220/230VAC ± 5% |
| Surge Power | 10000VA |
| Frequency | 50/60Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) |
| Peak Eficiency (PV to INV) | 97% |
| Peak Eficiency (Battery to INV) | 93% |
| Overload Protection | 5s@>=150% load; 10s 110%~150% load |
| Crest Factor | 3 : 1 |
| Admissible Power Factor | 0.6~1(inductive or capacitive) |
| Battery | |
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC |
| Overcharge Protection | 63 VDC |
| Charging Method | CC/CV |
| Solar Charge & AC Charge | |
| Solar Charge Type | MPPT |
| Max. PV Array Power | 5500W |
| Max. PV Array Open Circuit Voltage | 500 VDC |
| PV Array MPPT Voltage Range | 120VDC~450 VDC |
| Maximum Solar Input Current | 18A |
| Maximum Solar Charge Current | 100A |
| Maximum AC Charge Current | 60A |
| Maximum Charge Current | 100A |
| Communication Interface | USB/RS232/Dry-contact |
| Environment | |
| Operating Temperature | (-10℃~50℃) |
| Storage Temperature | (-15℃~60℃) |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |

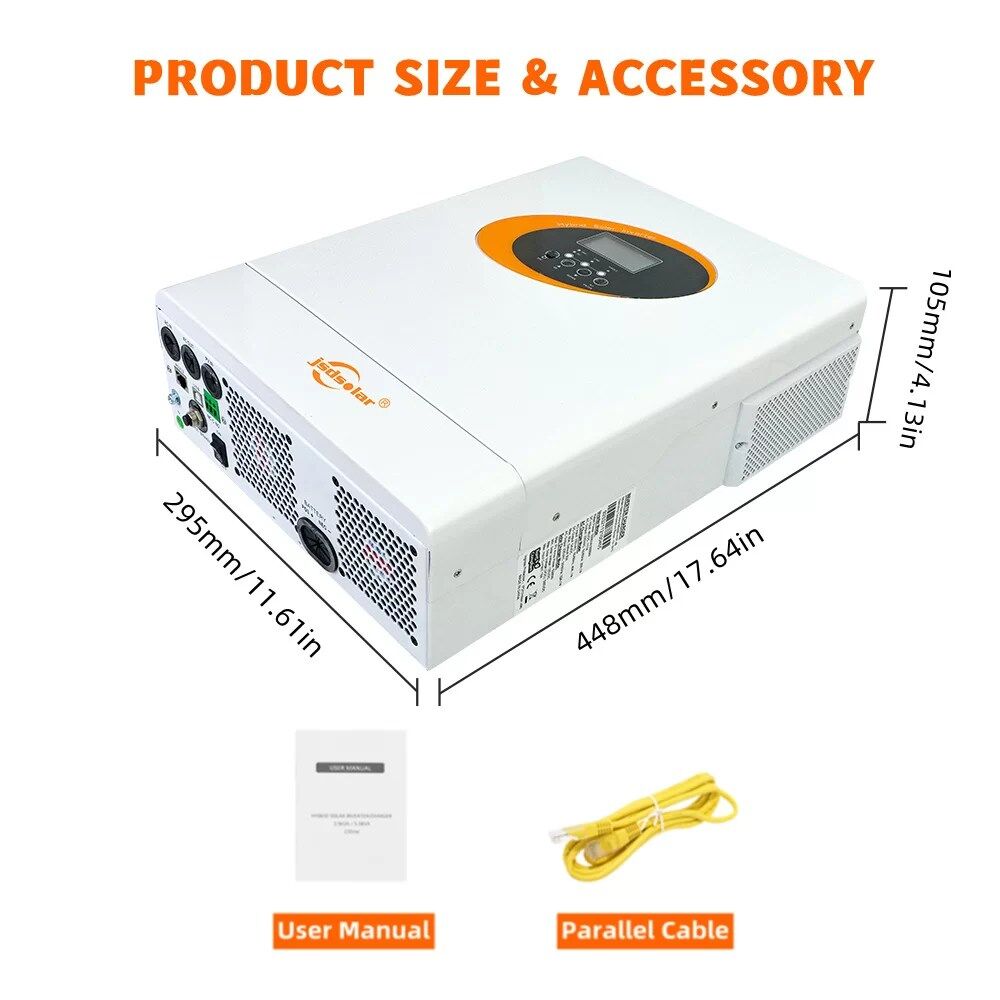

| Gross Weight/Size | 11KG/448*295*105mm |
