Description
About this item
♣ Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of panel for fast mounting and securing.
♣ Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life.
♣ Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .

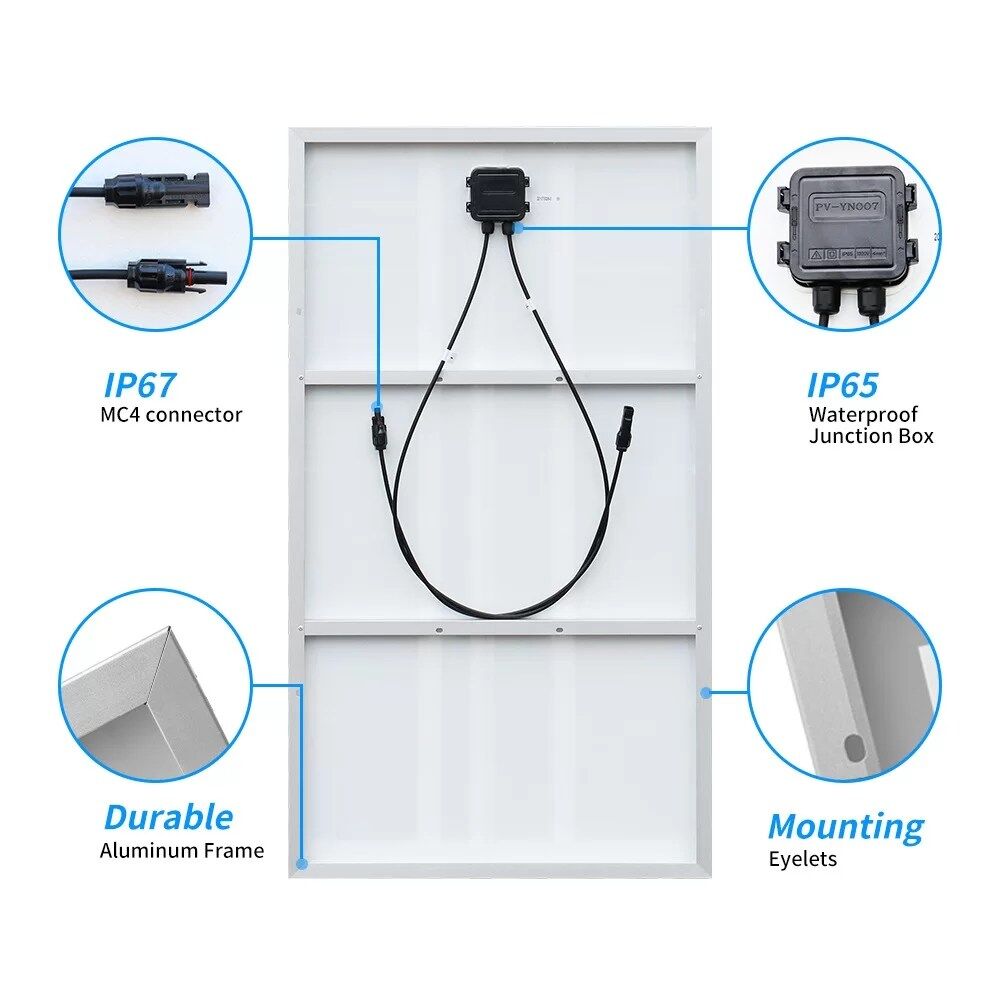

♣ By-pass diodes are pre-installed in waterproof IP-65 rated juncton box to minimize power drop caused by shade and ensure excellent performance in low-light environments.
Packing Listing:
1000W solar panel
(1) 10pcs 100W solar panel
OR
1000W solar kit
(1) 10pcs 100W solar panel
(2) 2 piece 12V/24V 50A PWM solar charge controller
(3) 2 set solar Extention cable with female and male connectors
(4) 2 set solar Extention cable with alligator clips
(5) 2 set Y Branch in parallel Connector (1 male to 5 female and 1 female to 5 male)
OR

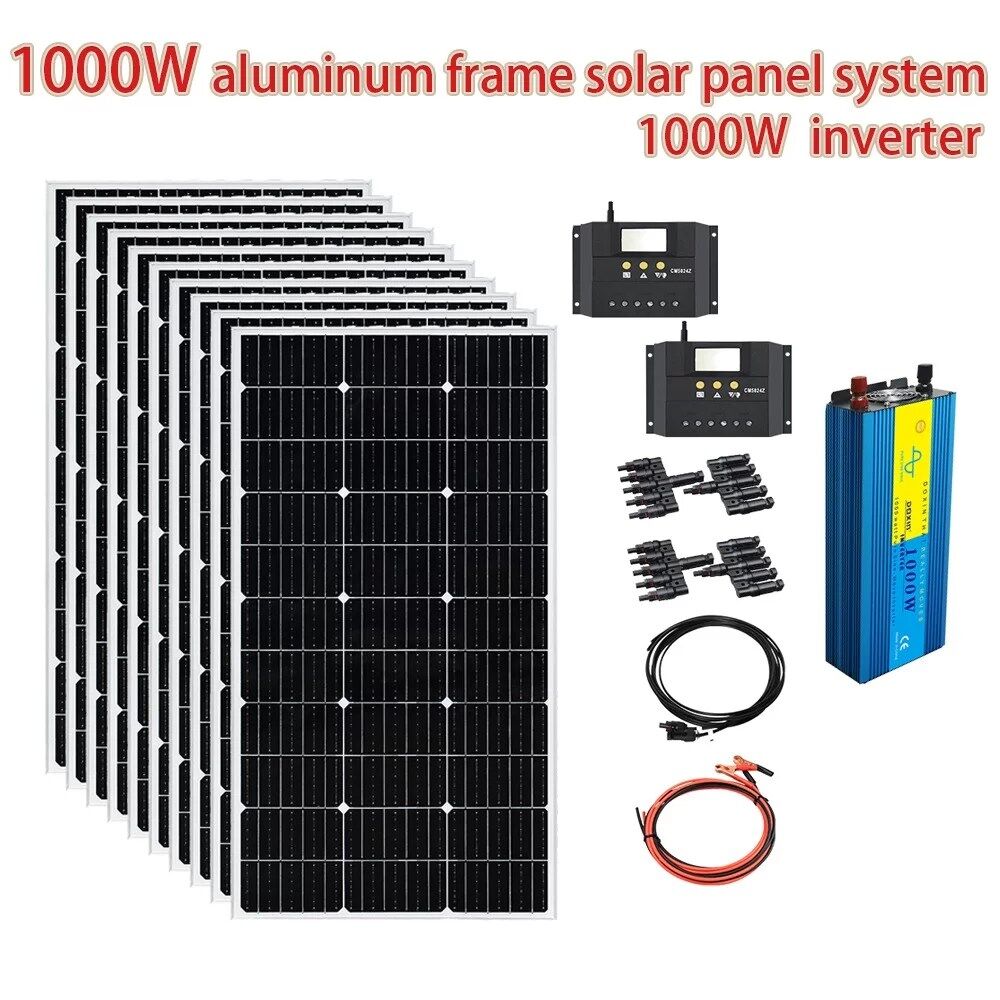

12V to 110V solar system
(1) 10pcs 100W solar panel
(2) 2 piece 12V/24V 50A PWM solar charge controller
(3) 2 set solar Extention cable with female and male connectors
(4) 2 set solar Extention cable with alligator clips
(5) 2 set Y Branch in parallel Connector (1 male to 5 female and 1 female to 5 male)
(6) 1 set 12V 110V 1000W inverter
OR
12V to 220V solar system
(1) 10pcs 100W solar panel
(2) 2 piece 12V/24V 50A PWM solar charge controller
(3) 2 set solar Extention cable with female and male connectors
(4) 2 set solar Extention cable with alligator clips
(5) 2 set Y Branch in parallel Connector (1 male to 5 female and 1 female to 5 male)
(6) 1 set 12V to 220V 1000W inverter
Specification:
Maximum power (Pmax) 100W
Output tolerance ± 5%
Maximum system voltage 1000V DC
Open circuit voltage(Voc) 19.8V
Short circuit current(Isc) 6.06A
Maximum power voltage(Vmp) 16.5V
Maximum power current(Imp) 5.55A
Cell efficiency 21%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Cell Monocrystalline silicon
Number of cells 33pcs
Weight 2500g

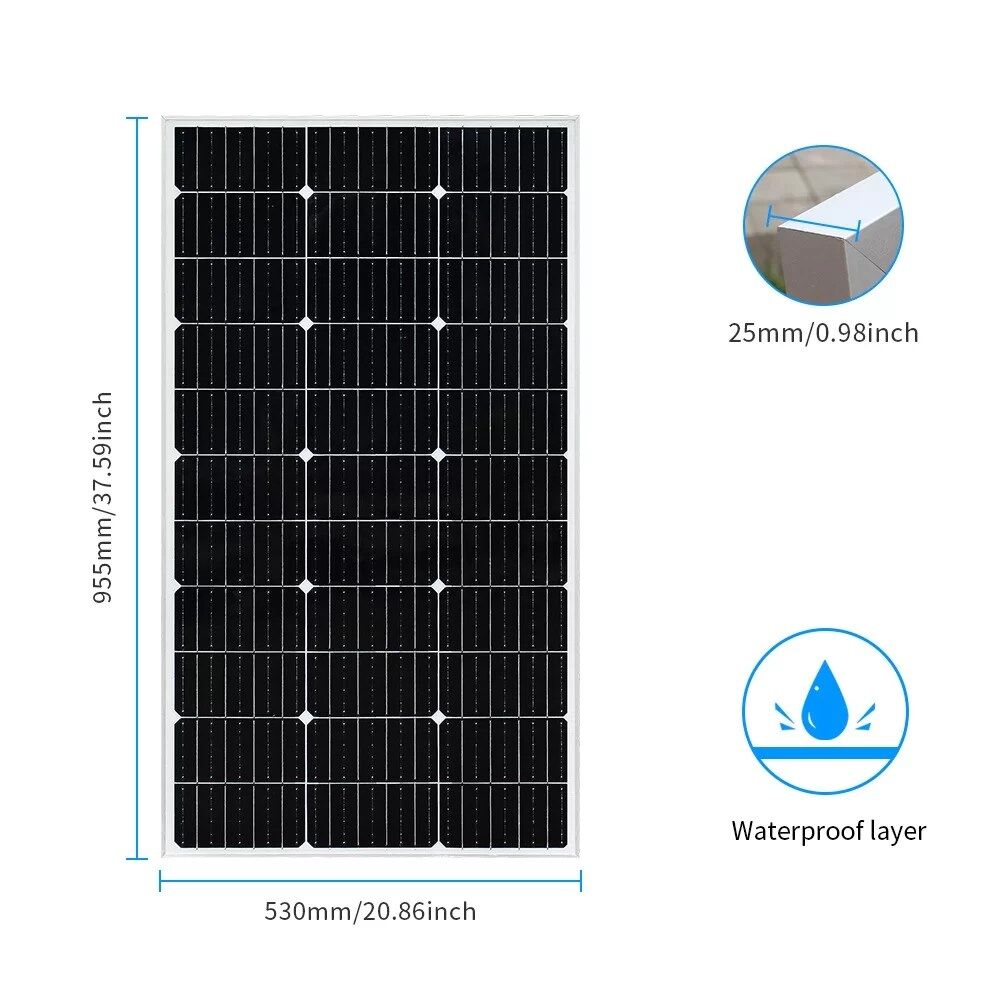

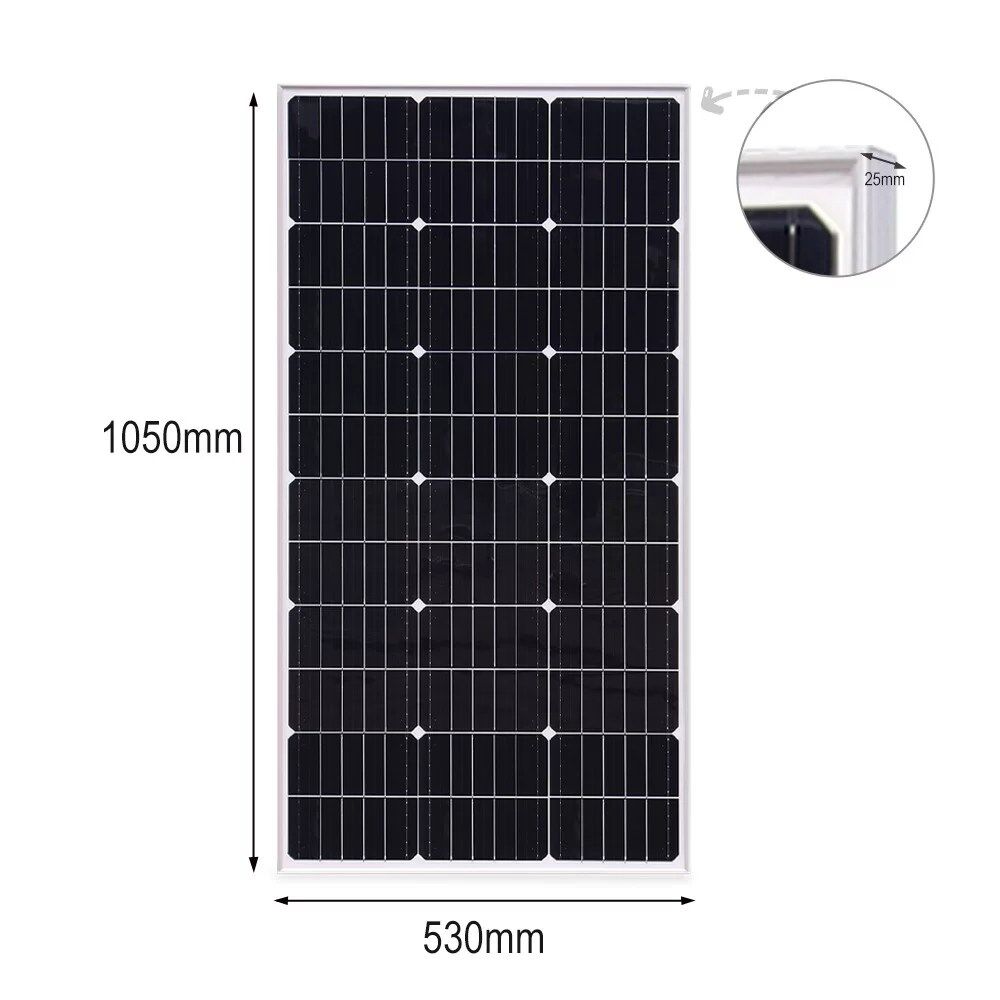

Size 955*530*25 / 1050*530*25mm
Back film Color White
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
